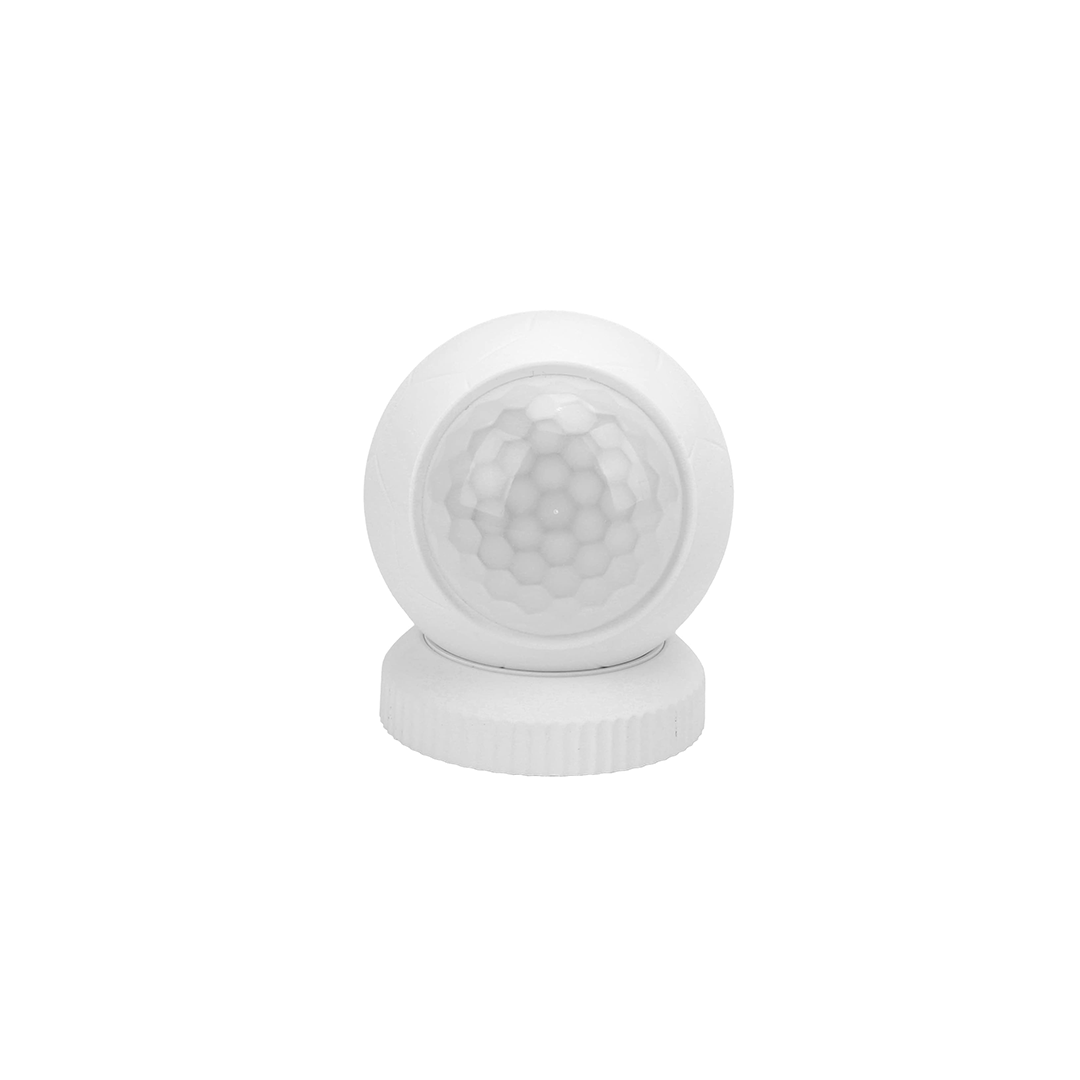

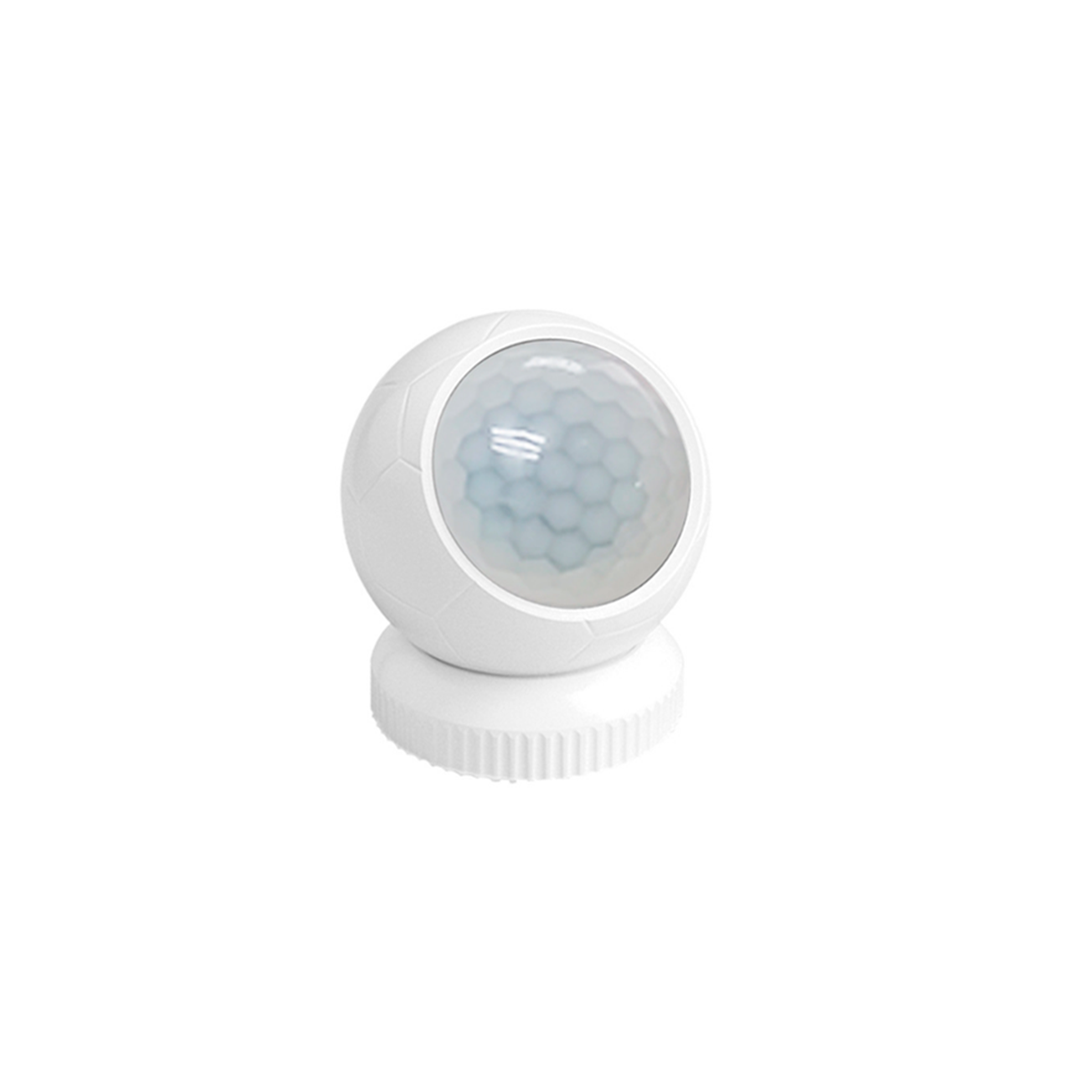

Light and PIR Sensor BLE – Wireless Motion Detection for Smart Buildings

The Light and PIR Sensor BLE is a high-performance Bluetooth 5.0 Passive Infrared Sensor designed for accurate presence and motion detection in indoor environments. Built with ultra-low power consumption technology, it seamlessly connects with our BLE IIoT Gateway (WiFi/LAN) to enable real-time data collection and automation.

This sensor beacon transmits BLE advertisements when motion is detected, allowing integration with building automation systems, energy management, and security applications.


Key Features:

• Seamless communication with the BLE IIoT Gateway (WiFi/LAN).

• Powered by Nordic nRF52 series chipset and BLE 5.0 for high efficiency.

• 110° wide detection angle and 8–12 meter detection range.

• Configurable detection intervals to reduce false triggers.

• Strong BLE signal and long battery life up to 5 years.

• Compact and modern design with easy mounting options.


Applications:

• Motion tracking

• Automated lighting control

• Door open/close detection

• Indoor positioning and security alerts


Technical Specifications:

• BLE Version: 5.0

• Dimensions (LxWxH): 48 x 48 x 53 mm

• Weight: 45 g (with battery)

• Battery: 2 x ER14335 (replaceable)

• Battery Life: Up to 5 years

• Detection Range: 8–12 meters

• BLE Transmission Range: Up to 100 meters (open area)

• Operating Temperature: -40°C to +70°C

• Mounting: 3M adhesive tape or screws


Cloud Integration

The sensor requires a connection to a GSM Cloud BLE Gateway via WiFi or LAN. The gateway sends data to the GSM Cloud platform, where the sensor can be monitored in real-time.


Subscription and Pricing

• Price: 10 DKK per unit/month (excluding VAT)
• Payment: Via gsmcloud.dk
• No commitment – Cancel anytime. Billing stops automatically when the device is removed from the cloud server.
