Door/window sensor BLE 5.0

Door/window sensor BLE 5.0

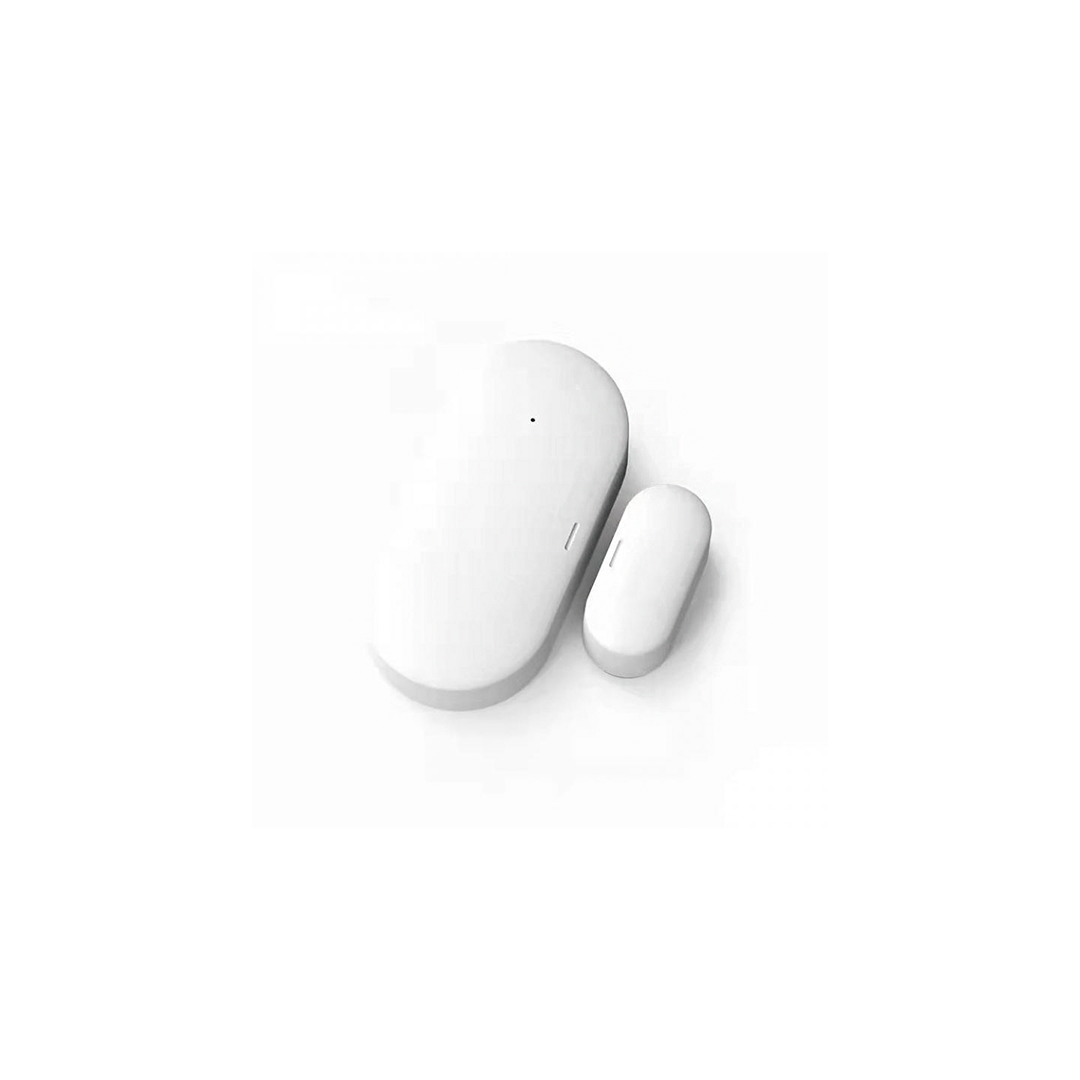

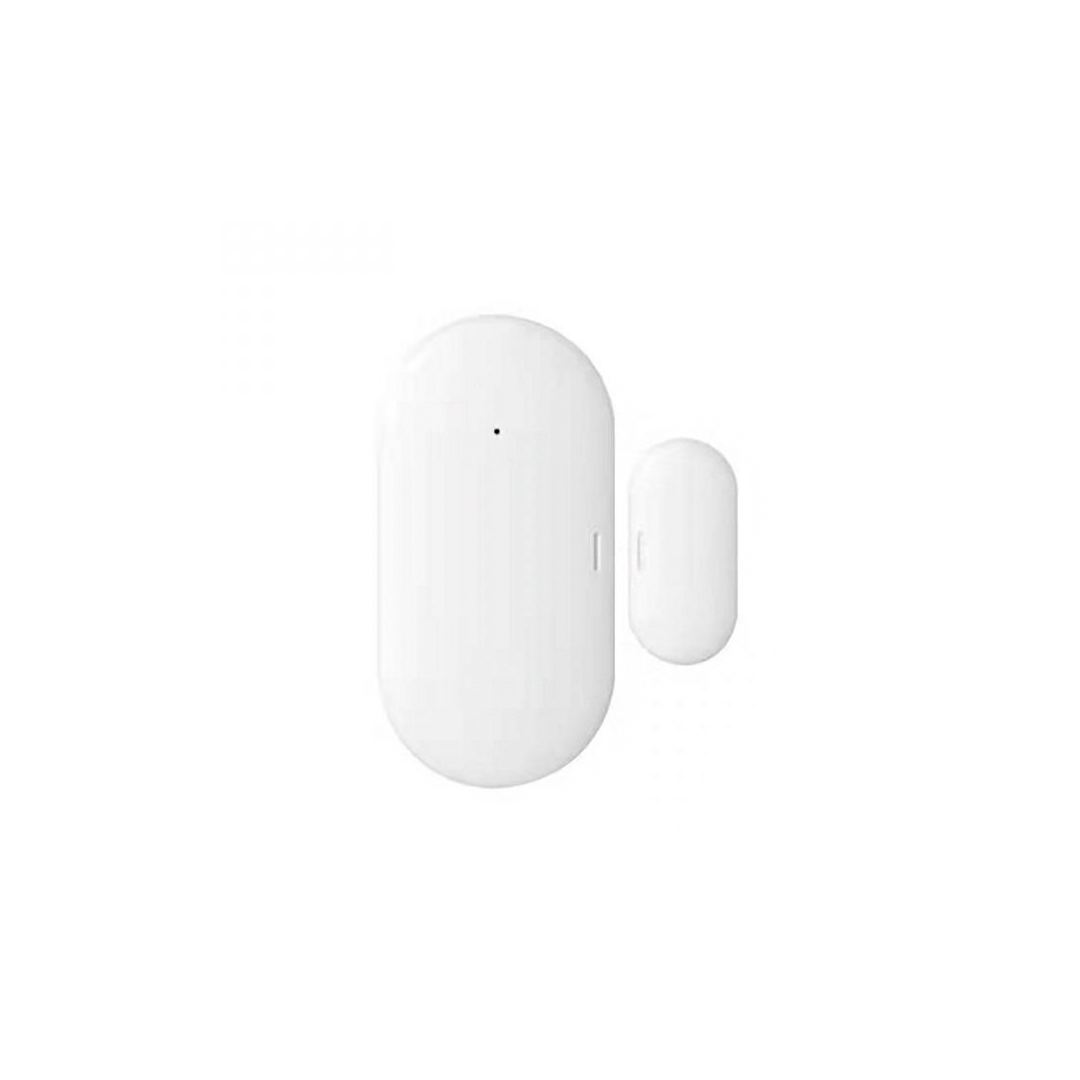

Magnetkontakt BLE is a compact and efficient Bluetooth sensor designed to detect the open/closed status of doors, windows, cabinets, and other entry points. It works seamlessly with our BLE IIoT Gateway (WiFi/LAN), enabling both local and remote real-time monitoring of your assets.

Utilizing Bluetooth Low Energy (BLE 4.0/5.0) and built on the ultra-low power Nordic nRF52 series chipset, the sensor ensures reliable performance with extended battery life. All settings are fully configurable through our cloud-based platform for tailored functionality.

When a door or window is opened, the sensor can trigger an alert, send a notification to your smartphone, or initiate an SMS/call-based warning via the gateway. Users can customize messages and notifications directly through the platform.


Key Features:

• Compatible with BLE IIoT Gateway (WiFi/LAN)

• Bluetooth Low Energy 4.0/5.0

• Ultra-low power consumption (Nordic nRF52 series)

• Broadcasts real-time status

• Compact, easy-to-install design

• Fully configurable via cloud platform

• Ideal for doors, windows, and access monitoring

• Suitable for home, business, or industrial environments


Material for shell: ABS
Color: White
Size: 52*26*14.5mm (Body) 25*12*14mm (Hall button)
Weight: 18g (with battery)
Accessory: 3M sticker
Battery: CR2032 Battery life 18 Months (Base on Broadcast Interval 1s and TX power 0dBm)
Waterproof level: IP44


Cloud Integration

The sensor requires a connection to a GSM Cloud BLE Gateway via WiFi or LAN. The gateway sends data to the GSM Cloud platform, where the senor can be monitored in real-time.


Subscription and Pricing

• Price: 10 DKK per unit/month (excluding VAT)
• Payment: Via gsmcloud.dk
• No commitment – Cancel anytime. Billing stops automatically when the device is removed from the cloud server.
