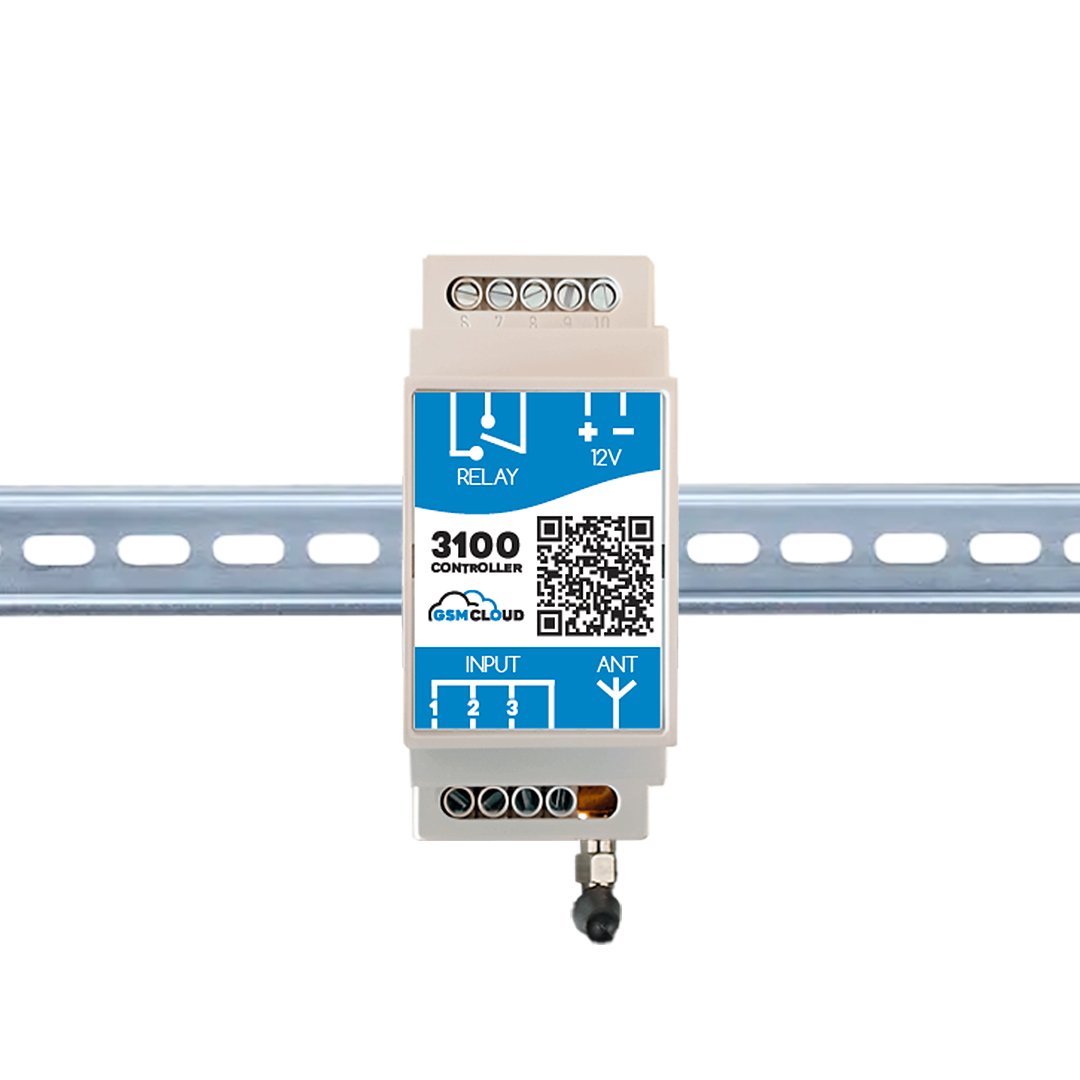

NB-IoT Module 3IN/1OUT (DIN)

GC-1606
In stock

Short description

Intelligent relay module for electrical panels with 5G NB-IoT. Easy installation, strong coverage, and flexible control via the cloud. Supports digital, analog, and temperature inputs, as well as remote control of electrical systems. Perfect for energy management, monitoring, and automation.

GSMCLOUD requires a subscription to access our platform.
Try it risk-free for 30 days and discover how easy cloud management can be.

Start free trial

Antenna

Power Supply

Price

374,80 EUR

(ex. VAT)

NB-IoT Module 3IN/1OUT (DIN)

Application

This control module is ideal for remote control of electrical devices such as heat pumps, solar panel systems, grain drying systems, and charging stations. It can also be used for temperature monitoring, power consumption measurement, and control of industrial processes and building automation. The unit is applicable in agriculture, production, logistics, and energy optimization to ensure more efficient and intelligent management of electrical systems.

The unit can be easily controlled and programmed via the Danish-developed GSMCLOUD server.

The module has three inputs and one output (relay), allowing regulation of, for example, heat pumps. The relay can be used to reduce power during peak electricity price periods.


Features and Benefits

  • Easy installation: Fits directly on a DIN rail and measures only 85x35x58 mm.

  • Built-in GSM module: Operates independently without WiFi and has an integrated SIM card.

  • Strong coverage: Uses the new 5G NB-IoT network, ensuring better signal reception than traditional GSM, even in basements and wells.

  • Ready to use: Comes with coverage in over 20 European countries and is quickly activated online at gsmcloud.com.

  • Intelligent control: Programming via cloud server with log function and alarms.

  • User-friendly dashboard: Can be used as an app on mobile, tablet, or computer.


Alarm Function via GSMCLOUD

The module sends data to the GSMCLOUD server every 10 seconds, enabling instant remote control.

  • Flexible inputs:

    • Digital inputs (NC/NO).

    • Analog inputs (0-20mA).

    • Temperature measurement (DS18B20).

    • Pulse counter (only on input 3).

  • Fast alarm notification: When an alarm is triggered, a message is sent within 10 seconds via SMS, email, or phone call.

  • Unlimited number of alarms: All devices can share the same account to consolidate SMS and call usage.


Technical Specifications

Size

 58 x 41 x 19 mm

Protection Class

 IP54
Inputs

3 x configurable as:

  • Digital NC/NO potential-free (no voltage).
  • Analog 0-20mA.
  • Digital temperature sensor type DS18B20 with temperature range -30 to +70 degrees C. (0.1-degree resolution).
  • Pulse counter for e.g. sub-metering (only input 3).
Outputs 1 x built-in relay (NC/NO) max. 250VAC/8A

Battery

 Built-in

Temperature Range

-20°C to +60°C

Network

NB-IoT (5G)

Coverage

Denmark, Sweden, Norway, Germany, Netherlands

Subscription and Pricing

  • Monthly subscription: DKK 30,- excl. VAT (includes SIM card, data, cloud access, logging, and support).
  • Message pricing: Emails are free, SMS: DKK 0.50/piece + VAT, calls: DKK 1/min. + VAT.
  • No commitment: Cancellation automatically stops billing at midnight.


Downloads


 Manual


Inputs 1, 2, 3
Outputs 1 relay
Enclosure IP0
Type of inputs Digital (On/Off), Analog (4-20mA), Temperature (DS18B20), Counter (Pulse)
