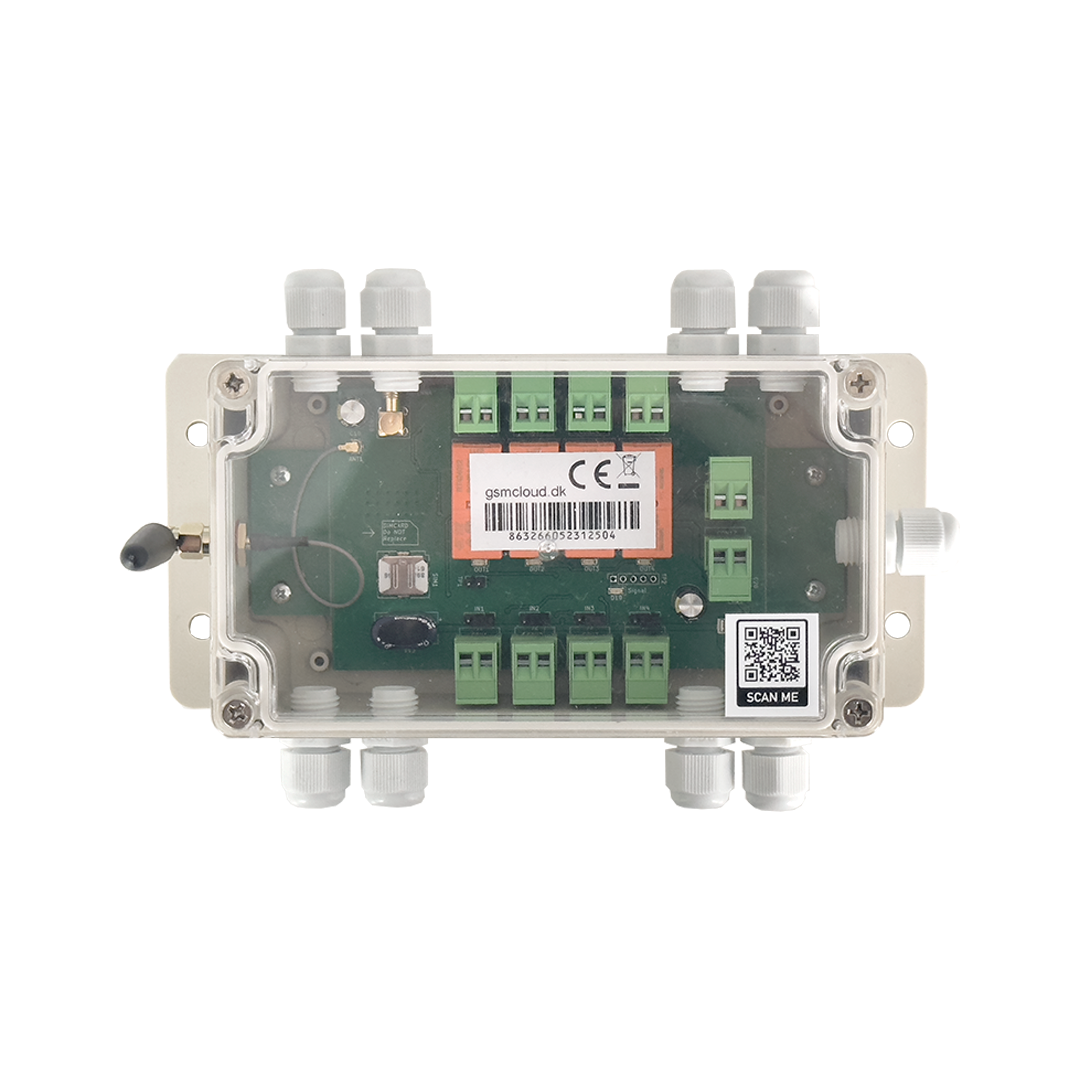

NB-IoT modul 4IN/4OUT (IP65)

SM Multi-IO Module with 4 Inputs and 4 Relay Outputs

What is it?
This GSM Multi-IO Module is an advanced solution for controlling and monitoring electrical devices such as heat pumps, solar systems, grain drying systems, and charging stations. The module uses the latest 5G NB-IoT technology, providing a better and more stable connection than regular GSM networks. The module is easily controlled through our Danish-developed GSMCLOUD server, offering a simple and flexible way to configure and monitor systems.

Application Areas
The module can be used to control several types of electrical systems, such as heat pumps and solar systems, with relay outputs and inputs that can be connected to external devices like temperature sensors or power meters. It is ideal for energy management, where it is necessary to control and monitor energy consumption remotely. The module can also be used to monitor and control other systems like charging stations and grain drying systems.

Features and Functions

• Inputs: 4 inputs, freely configurable. They can be used for digital inputs (NC/NO), analog inputs (0-20mA), temperature measurement with DS18B20 sensor (measures from -30°C to +70°C), or pulse counting.
• Outputs: 4 relay outputs (NC/NO), which can control electrical devices up to 250VAC/8A. Perfect for controlling devices like heat pumps.
• Communication: Uses NB-IoT (5G) technology, providing better signal strength, especially in areas with poor GSM signal such as basements or wells.
• Security and Reliability: The module is IP65 rated, meaning it is waterproof and can be used outdoors. It also has a built-in backup power capacitor that ensures operation even if the power goes out.
• Easy Installation and Setup: The module can be easily activated via GSMCLOUD.dk, and it is quickly ready for use. Programming and control are done through a simple cloud-based platform, which is user-friendly and requires no technical expertise.

Technical Specifications:

Costs:

• Subscription: 30 DKK/month excl. VAT (includes SIM card, data, and server access).

• SMS sending: 0.50 DKK per message

• Phone calls: 1.00 DKK/min

• No binding contract – the subscription stops automatically if the device is removed from GSMCLOUD.
